How to Draw Line on Image in Matlab

1. Using the plot() Function
2. Using the insertShape() Function
3. Conclusion
4. FAQ

Drawing lines and shapes on images can enhance visual representation and aid in data analysis. In MATLAB, you can easily add lines or shapes to images using the plot() and insertShape() functions. Whether you’re looking to highlight specific areas, annotate images, or create visual guides, these functions provide a straightforward approach to achieve your objectives.

In this article, we will explore how to draw lines on images in MATLAB using these powerful functions. We will provide step-by-step instructions along with code examples to help you understand the process better. By the end, you will have the knowledge to effectively annotate your images, making your visual data communication more effective.

Using the plot() Function

The plot() function in MATLAB is a versatile tool that can be used not only for plotting data but also for drawing lines on images. To use this function for drawing lines, you first need to display the image and then overlay the line on top of it. Here’s a step-by-step guide:

1. Load the image using the imread() function.
2. Display the image using the imshow() function.
3. Use the hold on command to allow for multiple graphics overlays.
4. Define the coordinates for the line you want to draw.
5. Use the plot() function with the specified coordinates.

Here’s how you can do it:

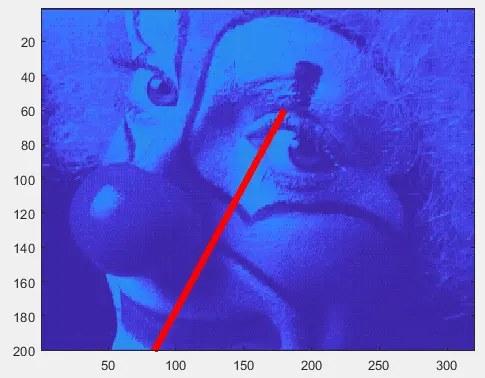

img = imread('your_image.jpg');
imshow(img);
hold on;
x = [0, 200]; % X-coordinates of the line
y = [150, 250]; % Y-coordinates of the line
plot(x, y, 'r', 'LineWidth', 2);
hold off;

In this code, we begin by reading an image file named ‘your_image.jpg’. The imshow() function displays the image in a figure window. The hold on command is crucial as it allows us to overlay additional graphics on the image. We define two arrays, x and y, which represent the starting and ending coordinates of the line in the image. Finally, the plot() function is called with the specified coordinates, setting the color to red ('r') and the line width to 2. This results in a clear, visible line on the displayed image.

Using the insertShape() Function

Another effective way to draw lines on images in MATLAB is by using the insertShape() function. This function is particularly useful for adding various shapes, including lines, rectangles, and circles, directly to an image. It allows for more customization compared to the plot() function. Here’s how to use insertShape() to draw a line:

1. Load the image using imread().
2. Specify the position and properties of the line using a structure.
3. Use the insertShape() function to draw the line on the image.
4. Display the modified image.

Here’s a code example:

img = imread('your_image.jpg');
linePosition = [100, 150, 200, 250]; % Start and end points of the line
lineColor = 'red'; % Color of the line
lineThickness = 5; % Thickness of the line
imgWithLine = insertShape(img, 'Line', linePosition, 'Color', lineColor, 'LineWidth', lineThickness);
imshow(imgWithLine);

In this example, we again start by loading the image. The linePosition variable defines the coordinates for the line using a four-element vector: the starting point (x1, y1) and the ending point (x2, y2). The insertShape() function is called with the image, shape type (‘Line’), position, color, and thickness as parameters. The modified image is then displayed using imshow(). This method allows for more visual customization and is particularly useful when you need to draw multiple shapes or lines on the same image.

Conclusion

Drawing lines on images in MATLAB is a straightforward process that can significantly enhance your images for analysis or presentation. Whether you choose to use the plot() function for simple overlays or the insertShape() function for more complex annotations, both methods offer unique advantages. With the examples provided, you now have the tools to start annotating your images effectively. Experiment with different shapes and configurations to find what works best for your specific needs.

FAQ

1. Can I draw multiple lines on the same image?
   Yes, you can use either the plot() or insertShape() function multiple times to draw multiple lines on the same image.

2. What types of shapes can I draw using insertShape()?
   The insertShape() function allows you to draw lines, rectangles, circles, and polygons on your images.

3. Is it possible to change the color of the line?
   Yes, both the plot() and insertShape() functions allow you to specify the color of the line.

4. How do I save the modified image with the drawn lines?
   You can use the imwrite() function to save the modified image after drawing the lines.

5. Can I adjust the thickness of the lines I draw?
   Yes, you can set the line width in both the plot() and insertShape() functions to adjust the thickness.
