PyQt5 Basic Window

Basic Window

We’re going to create a basic window in PyQt5.

Basic Window.py
import sys
from PyQt5 import QtWidgets

def basicWindow():
    app = QtWidgets.QApplication(sys.argv)
    windowExample = QtWidgets.QWidget()
    windowExample.setWindowTitle('Basic Window Example')
    windowExample.show()
    sys.exit(app.exec_())

basicWindow()
from PyQt5 import QtWidgets

It imports the QtWidgets module so that we have access to the graphical user interface.

app = QtWidgets.QApplication(sys.argv)

It creates an application object that has access to the event loop.

windowExample = QtWidgets.QWidget()

We then need to create a QtWidget, because we’re going to use that as our top-level window and it has everything that we want.

windowExample.setWindowTitle('Basic Window Example')

setWindowTitle sets the window a title and it could be called whenever you need it.

windowExample.show()

It is needed to show the window.

sys.exit(app.exec_())

We need to start that event loop by using the app.exec_() function.

If we don’t do this, the program will run straight through because it won’t keep running back on itself and this event loop here is waiting for events from us to run there.

basicWindow()

Now we’re going to put all of that in a function which could be called to start our window running.

PyQt5 Basic Window

Change Window Size

If we would like to change the size of the window, we could use setGeometry() method of window widget.

Basic Window_Change Window Size.py
import sys
from PyQt5 import QtWidgets

def basicWindow():
    app = QtWidgets.QApplication(sys.argv)
    windowExample = QtWidgets.QWidget()
    windowExample.setGeometry(0, 0, 400, 400)
    windowExample.setWindowTitle('Basic Window Example')
    windowExample.show()
    sys.exit(app.exec_())

basicWindow()
windowExample.setGeometry(0, 0, 400, 400)

setGeometry() method takes 4 integers as input argument that are

  • X coordinate
  • Y coordinate
  • Width of the frame
  • Height of the frame

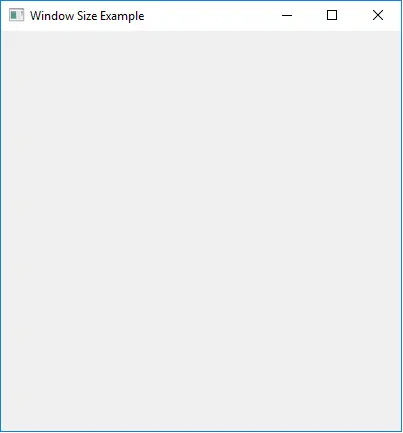

Therefore, the example window size is 400 x 400 pixels.

PyQt5 Window Size

Add Window Icon

Basic Window_Add Window Icon.py
import sys
from PyQt5 import QtWidgets, QtGui

def basicWindow():
    app = QtWidgets.QApplication(sys.argv)
    windowExample = QtWidgets.QWidget()
    windowExample.setWindowTitle('Basic Window Example')
    windowExample.setWindowIcon(QtGui.QIcon("python.jpg"))
    windowExample.show()
    sys.exit(app.exec_())

basicWindow()
windowExample.setWindowIcon(QtGui.QIcon("python.jpg"))

It sets the window icon to be python.jpg. The parameter of setWindowIcon method is QIcon object from QtGui module.

PyQt5 Window Size
