在 Java 中建立動畫

Sheeraz Gul 2024年2月15日
在 Java 中建立動畫

Java Swing 庫中的 JFrame 類可用於在 Java 中建立不同的圖形和動畫。直到 JDK 8 小程式用來建立動畫,但後來被刪除了,加入了 JAVA swing。

本教程將討論和演示使用 Java 建立動畫。

在 Java 中使用 JFrame 類建立動畫

使用 JFrame,我們可以決定動畫的顏色、形狀和時間。讓我們建立一個包含三部分但六種顏色的二維旋轉餅圖。

package delftstack;

import java.awt.Color;
import java.awt.Graphics;
import java.awt.Insets;
import java.util.Timer;
import java.util.TimerTask;
import javax.swing.JFrame;

public class Animation extends JFrame {
  private static int DELAY = 500; // The speed on which the animation will run

  Insets animate_insets;

  Color colors[] = {Color.PINK, Color.GREEN, Color.ORANGE, Color.BLACK, Color.WHITE, Color.MAGENTA};

  public void paint(Graphics demo) {
    super.paint(demo);
    if (animate_insets == null) {
      animate_insets = getInsets();
    }
    int a = animate_insets.left;
    int b = animate_insets.top;
    int animation_width = getWidth() - animate_insets.left - animate_insets.right;
    int animation_height = getHeight() - animate_insets.top - animate_insets.bottom;
    int animation_start = 0;
    int animation_steps = colors.length;
    int animation_stepSize = 720 / animation_steps;
    synchronized (colors) {
      for (int i = 0; i < animation_steps; i++) {
        demo.setColor(colors[i]);
        demo.fillArc(a, b, animation_width, animation_height, animation_start, animation_stepSize);
        animation_start += animation_stepSize;
      }
    }
  }

  public void go() {
    TimerTask animation_task = new TimerTask() {
      public void run() {
        Color animation_color = colors[0];
        synchronized (colors) {
          System.arraycopy(colors, 1, colors, 0, colors.length - 1);
          colors[colors.length - 1] = animation_color;
        }
        repaint();
      }
    };
    Timer animation_timer = new Timer();
    animation_timer.schedule(animation_task, 0, DELAY);
  }

  public static void main(String args[]) {
    Animation Demo_Animation = new Animation();
    Demo_Animation.setSize(400, 400);
    Demo_Animation.show();
    Demo_Animation.go();
  }
}

上面的程式碼將生成一個包含三個部分和六種不同顏色的旋轉餅圖。

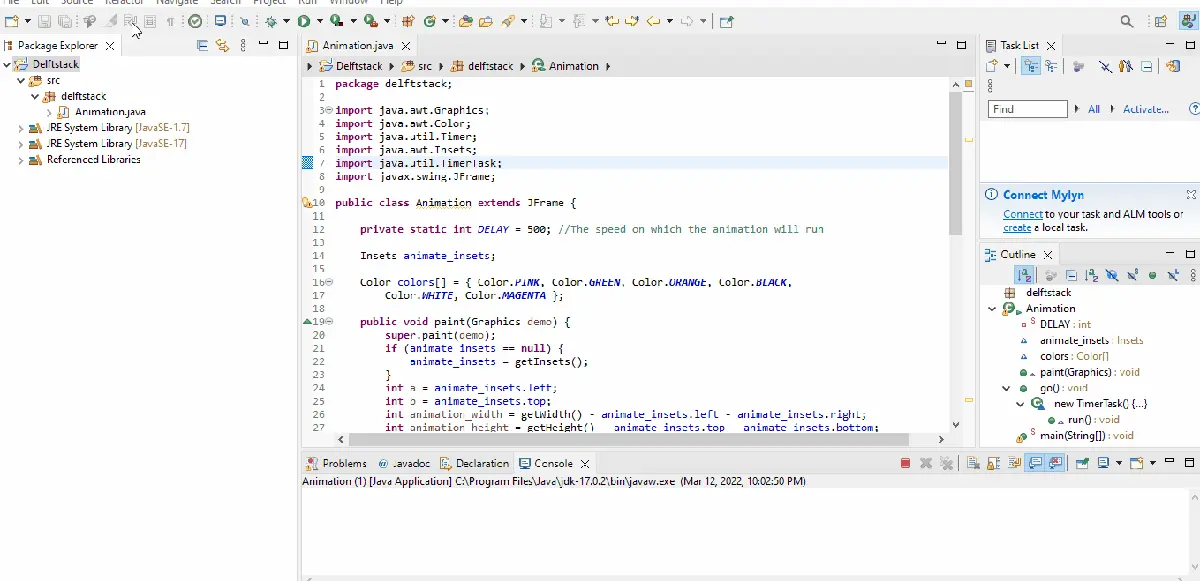

輸出:

Java 中的動畫

我們可以使用 Java swing 庫建立具有不同形狀和顏色的動畫。
